Station Alert Kit 2+ (SA812+ Controller) w/Your Choice of two Alert devices

Station Alert System 2+ (SA812 Controller) with choice of Bell or Gong and choice of LED Notification Device. This system is designed to connect directly to a Motorola Monitor or Unication Amplified Charger and is compatible with Monitor III/IV/V/VI or Unication G Series Amp Charger out of the box.

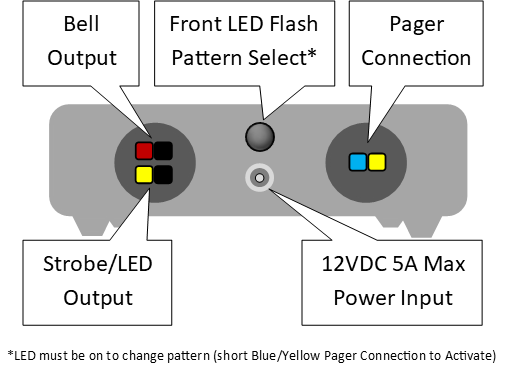

The Station Alert 2+ Unit has a Built In Red, Yellow or Blue LED Light on front of unit and allows for 2 Timed notification devices such as a bell and strobe light to be activated when a call is dispatched over your communications system with independent time settings. Each device (i.e. LED / Bell) can be set to activate for a period of time from 1 second to 45 minutes Independent of each other in pre-set increments. Timer settings are adjustable by the user.

The unit is plug-and-play and only requires minimum wiring knowledge to connect the device at your station.

This system works on Low Voltage DC Current and does not require an electrician to install the wiring or devices.

The SA812 controller can be used with the following Alert Receivers/Pagers:

• Motorola Minitor Amplified Chargers (Minitor 3 thru 6)
• Unication G-Series Amplified Chargers (G1 thru G5)

Note: Unication Pagers require the pager to be programmed to activate the internal relay of the amp charger. If this is not set correctly the alert system will not work.

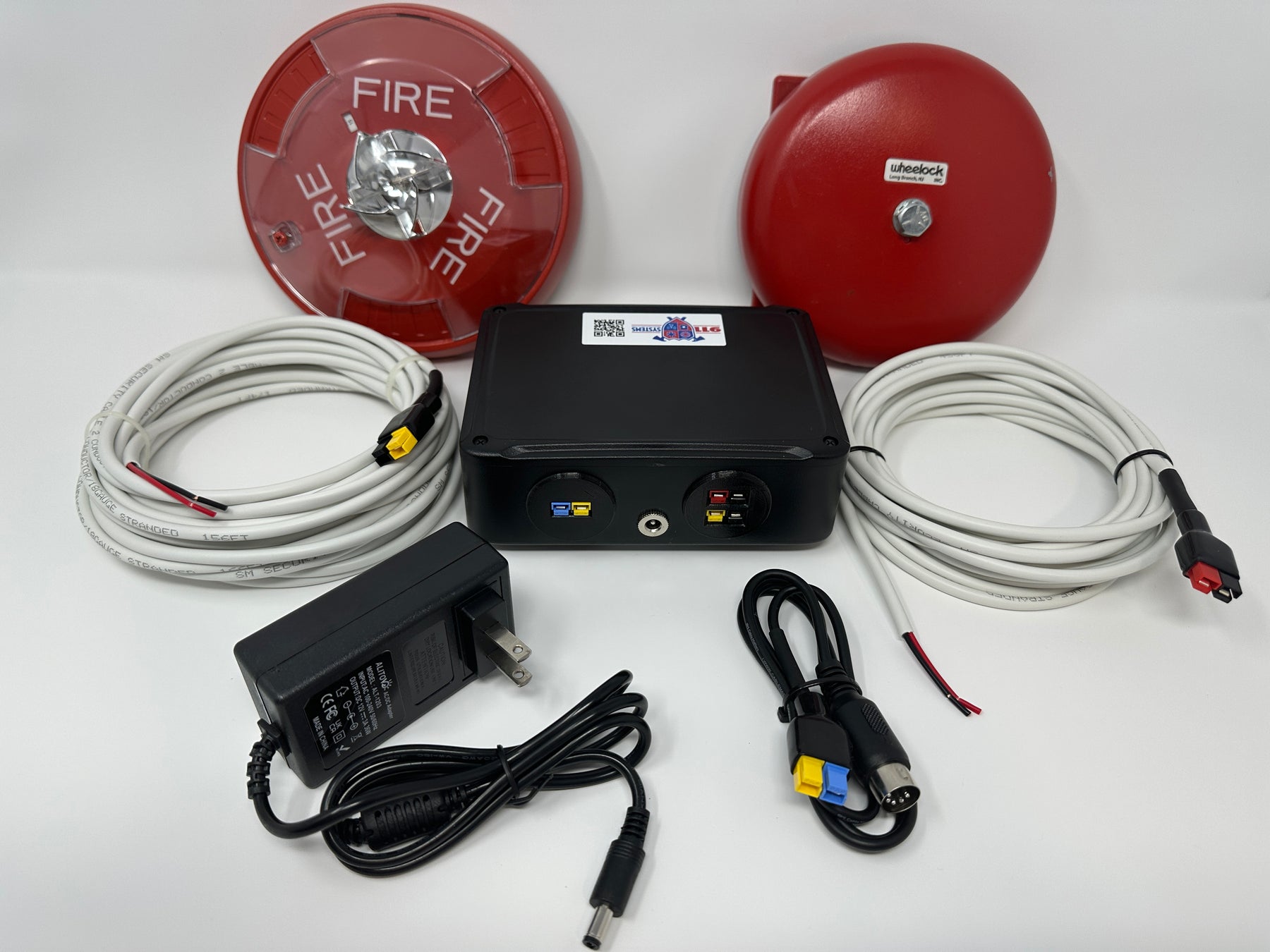

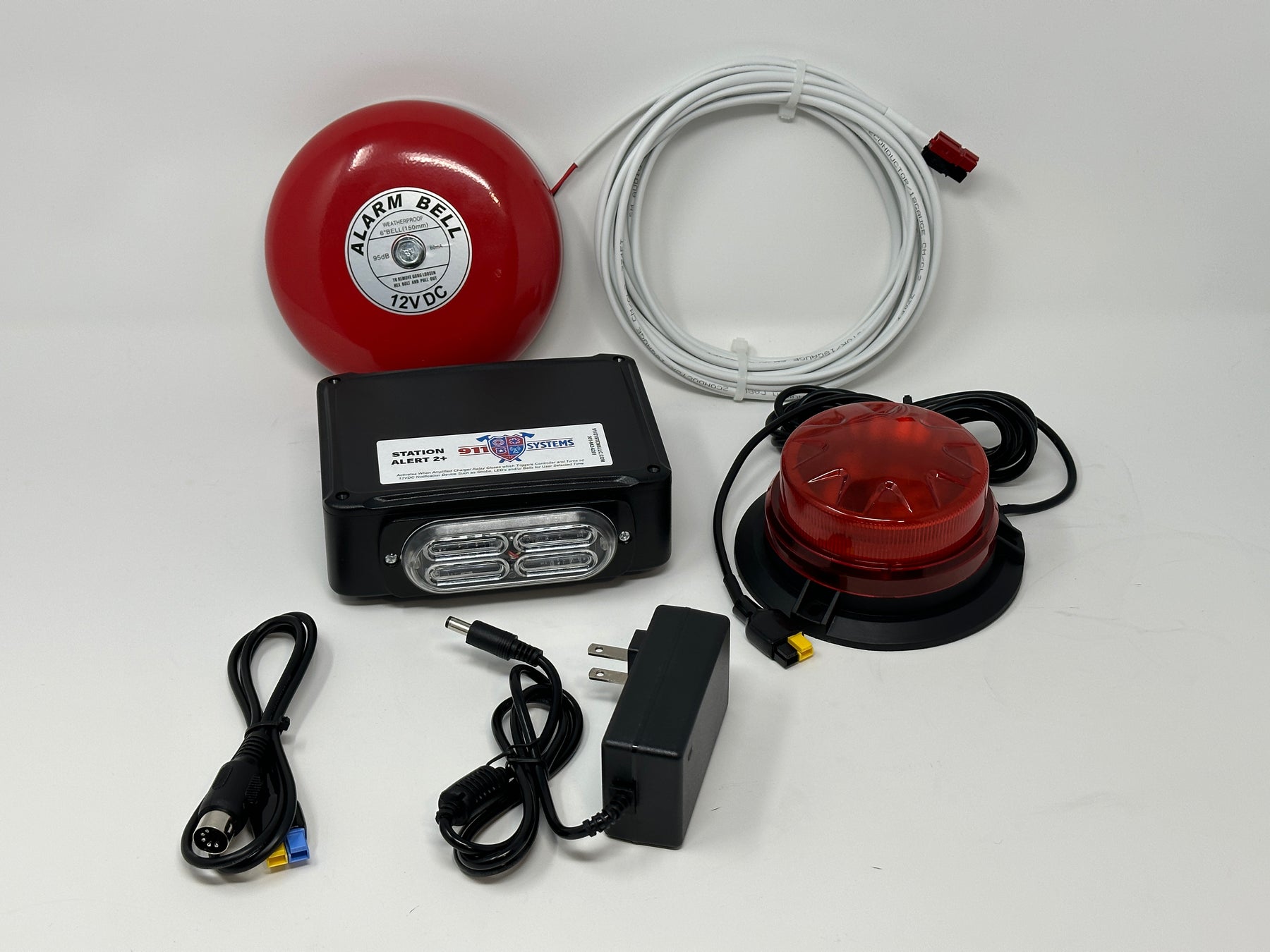

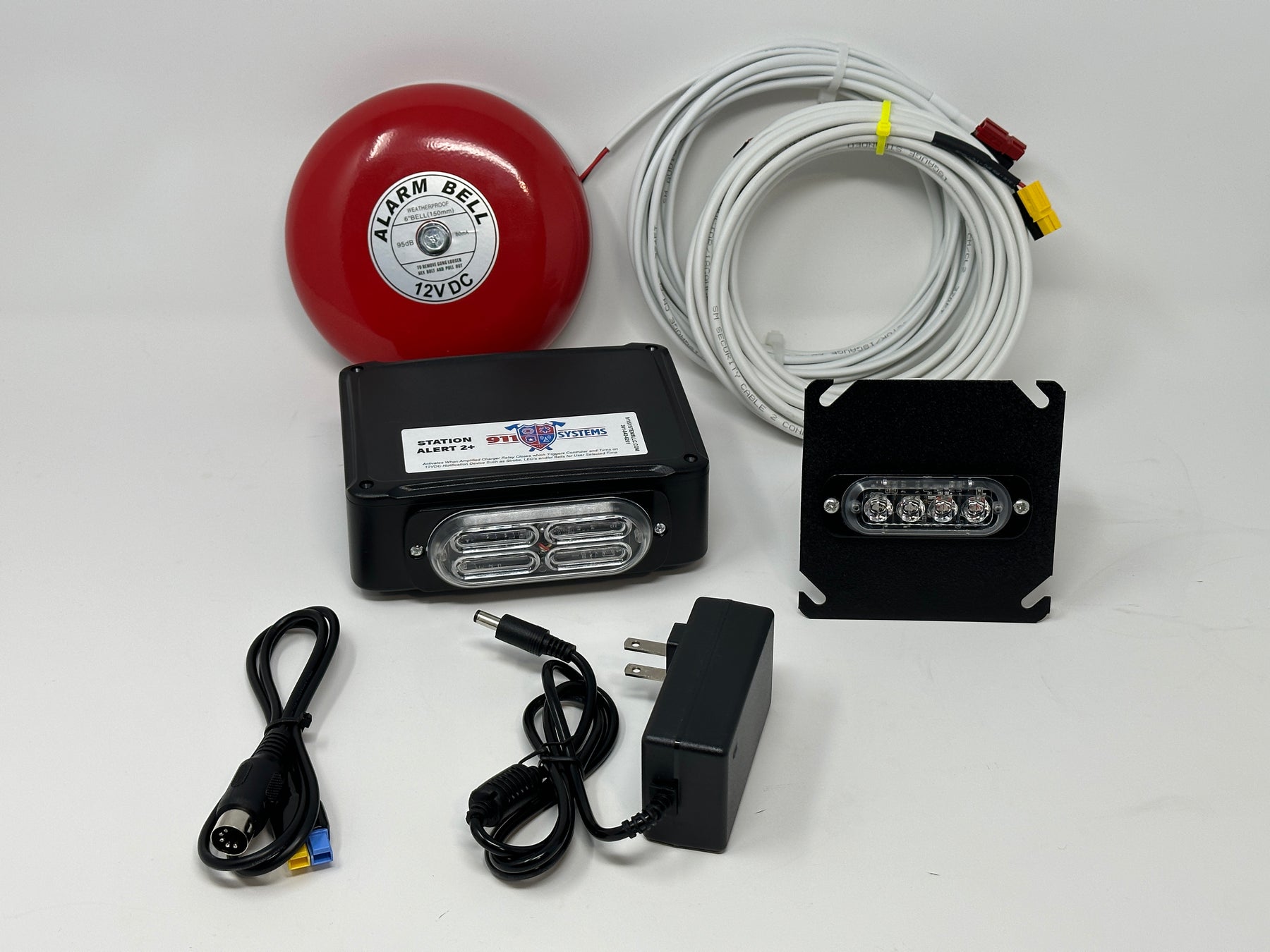

What's Included:
SA812 Controller w/Front Mounted LED
Minitor / Unication G Series Pager Interface Cable
Power Supply 12v 5A
50 Feet of Connection Cable
1x Audible Alert Device
1x Visual Alert Device

You Can Add Additional Alert Devices to this system Visual Alert Devices & Audible Alert Devices
