SDR Radio Server Cabinet

What's Included (Base Hardware / Software):

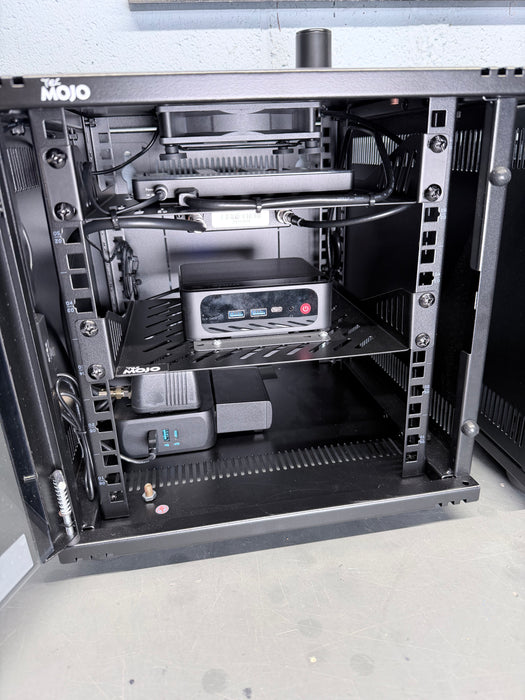

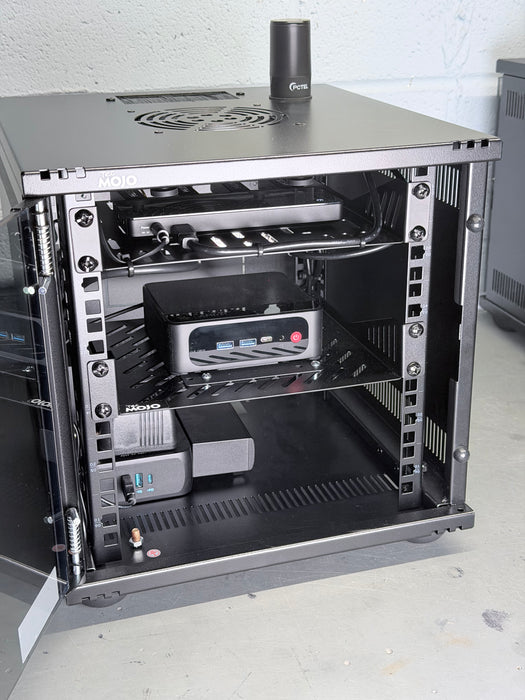

• 6U 10" Key Lockable Server Rack w/Top Mounted Cooling Fan

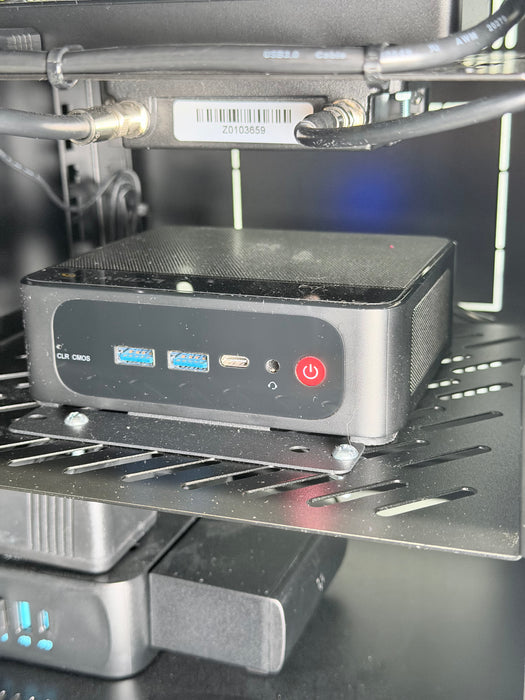

• AMD Ryzen Powered Computer (Based on Server Level)

• HDMI Mimic Plug For Remote Desktop Connections to Connect w/o Monitor
• 4, 5, 6, or 7 SDR Receivers (Based on Selection)
• High Quality RF Pigtails to Interface SDR to Distribution Amp
• 4 Way or 8 Way Signal Distribution Amp (Based on SDR Selection)
• TP-Link 3.0 Powered USB Hub (5, 6 & 7 SDR's get 2x Hubs)
• UL Listed Surge Protector w/USB Ports to Power Cooling Fan
• NMO with Selected Antenna Choice or N Jack or BNC Jack For Existing Antenna


• Software Base Configurations (all server levels):
  • Computer Power On Auto Start (Auto Powers Back on if Power is Lost)
  • Windows 11 Pro User Account Setup as "admin"
    • Auto Logon Enabled w/o Password
  • Auto Launch All SDR Programs On Computer Start
  • Load Latest Windows Updates
  • Disable Automatic Windows Updates (Manual Installs recommended)
  • Turn off all Windows 11 Notifications
  • Other under the hood modifications to streamline server
  • Install SDR Driver and SDR Dongle Serialization (if needed)
  • Install FFMpeg Audio Codec Installation for Normalization of audio Levels
  • Install SDRTrunk Software for receiving your agencies radio system
  • Install Trunking Recorder (Free Software)
  • Install RDIO-Scanner (Free Software)
  • Install ThinLine-Radio (Free Software)


• SDR Scanner Server Configurations (Pro and Enterprise Level):
  • Install AnyDesk Remote Desktop with Unattended Access
  • Cloudflare Tunnel Configurations for:
    • Trunking Recorder (i.e. https://mytr123.e911.live)
    • RDIO-Scanner (i.e. https://myrdio123.e911.live)
    • ThinLine-Radio (i.e. https://mytlr123.e911.me)
  • Import and Configure Radio Systems in SDRTrunk
  • Configure SDR Dongles if needed
  • Configure Trunking Recorder for Talkgroups you would like logged
  • Configure RDIO-Scanner Server to allow SDRTrunk API Access
    • Initial Configuration of Radio System Channels / Talkgroups
    • Verify Server is Working
    • Setup Password if needed to restrict Scanner access
  • Configure ThinLine-Radio Server to allow SDRTrunk API Access
    • Initial Configuration of Radio System Channels / Talkgroups
    • Verify Server is Working
    • Setup Groups
    • Setup Fire Tone Out Configurations
    • Setup Basic Keyword Lists for Servers with Transcriptions
    • API Transcription w/Provided API Data
    • Whisper On Machine Transcription server config (Enterprise Only)
  • Dedicated Support and Telephone call to go over inital server configurations
  • Requires buyer to provide Radio systems location and type information. we are unable to setup a server with out specific radio systems and talkgroup information.

High-Density Signal Monitoring & AI Transcription Center

The 911 Systems SDR Radio Server is a professional-grade, integrated solution for exhaustive radio spectrum monitoring. Housed in a specialized 6U 10-inch mini server rack, this system provides the power of a full-scale radio room in a desktop-sized footprint. Designed for 24/7 reliability, it is the ideal engine for agencies, first responders, and power users.

Advanced Alerting & Mass-Scale Streaming

●       Push-to-Alert Intelligence: Features user-selectable single-tone and two-tone fire pager alert detection. Users receive instant push notifications only for the specific alerts and tone sets they have chosen, ensuring critical calls are never missed.

●       User-Defined Audio Selection: Unlike traditional scanners, audio is served based on the user’s specific channel and talkgroup selection. This allows each individual to monitor only the traffic relevant to their role or region.

●       Massive Connectivity: Utilizing the ThinLine-Radio and RDIO-Scanner platforms, the system supports connecting hundreds of users simultaneously with industry-leading low latency.

●       Customized Monitoring: Every user has the autonomy to choose which live feeds to monitor and which alerts to subscribe to at any given time, providing a completely personalized near real-time communications experience.

The RF Edge: Multi-Band Efficiency

●       2.4MHz Bandwidth per SDR: Every receiver in the rack monitors 2.4MHz of the RF spectrum simultaneously.

●       Public Safety Band Coverage: Optimized to monitor vast sections of the Public Safety Bands (VHF, UHF, 700MHz, and 800MHz) concurrently.

●       Universal Modulation Support: Fully compatible with Conventional, DMR, and P25 Phase I & II modulations, ensuring seamless monitoring of almost any public safety infrastructure.

●       Scalable Monitoring: While 3 SDRs can cover the entire 700MHz narrowband block, the system is designed to scale with additional receivers to capture traffic across multiple distinct bands at once.

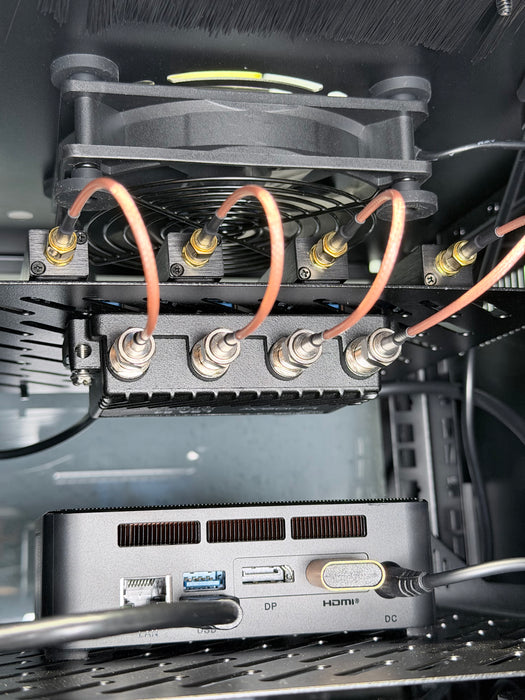

●       Active Signal Distribution: Includes an integrated active distribution amplifier, allowing a single antenna input to provide a clean, amplified signal to every receiver in the rack.

Inside the Ecosystem: Integrated Software Architecture

Our systems utilize a "Handshake Architecture," where each software component is specifically tuned to pass data to the next with zero latency.

●       SDR Trunk (The Spectrum Decoder): The primary gateway. It decodes the entire 2.4MHz spectrum of each dongle simultaneously, meaning it can record and stream every conversation happening within that window without "missing" a hit while scanning.

●       Trunking Recorder (The Audio Historian): Manages the data library. Every transmission is tagged with User ID, Talkgroup Name, Frequency, and Exact Timestamp for instant SQL-database search and recall.

●       RDIO-Scanner (The Virtual Dispatch Desk): The front-end interface. It mimics a physical hardware scanner, allowing users to "Hold" talkgroups or search past calls via a beautiful web-based interface.

●       ThinLine-Radio (The Mission-Critical Alerter): Our proprietary alerting integration. It "listens" to raw audio for tone-sets and triggers high-priority Mobile Push Notifications directly to the user's device.

Antenna Configuration Options

To ensure maximum signal integrity, we offer a variety of antenna solutions tailored to your specific monitoring environment:

●       Rack-Mounted Solutions: Dedicated rack-top antennas for VHF, UHF, or 760–870MHz, including a Tri-Band All-in-One solution for a single-cable footprint.

●       External & Rooftop Solutions: High-gain Omni-Directional antennas for 360-degree coverage or Yagi Directional antennas to target distant, weak trunking sites.

Choose Your Build Level

Tier Details & Support Notices

Bare Bones Edition (The Expert’s Canvas)

●       Software State: All core radio software is pre-installed but remains unconfigured. Intended for users with the technical knowledge to configure the radio stack.

●       Support: Tech support is not provided for software configuration. Hardware-only support is included.

Pro Edition (The Reliable Workhorse)

●       Turnkey Solution: Fully configured for ThinLine-Radio, RDIO-Scanner, and Trunking Recorder.

●       *Cloud Transcription Notice: Supports automated transcription via third-party services. A separate service fee is required; payment is made directly to the AI provider.

●       Support: Includes AnyDesk remote assistance for initial setup and frequency programming.

Enterprise AI Edition (The Intelligence Hub)

●       Local AI Engine: Uses the Ryzen AI 9 HX 370 NPU (50 TOPS) to run OpenAI Whisper locally.

●       No Recurring Fees: Because processing happens on-site, there are no per-minute fees to third-party providers.

●       Transcription Privacy: While live audio can be streamed remotely, the transcription and AI analysis are handled entirely on your own hardware.

●       Capacity: Scalable to 10 SDR dongles for exhaustive monitoring across the entire spectrum.
