Station Alert 812 (SA812) Controller Kit For Minitor and Unication Pagers
Ships in 1 to 3 Business Days

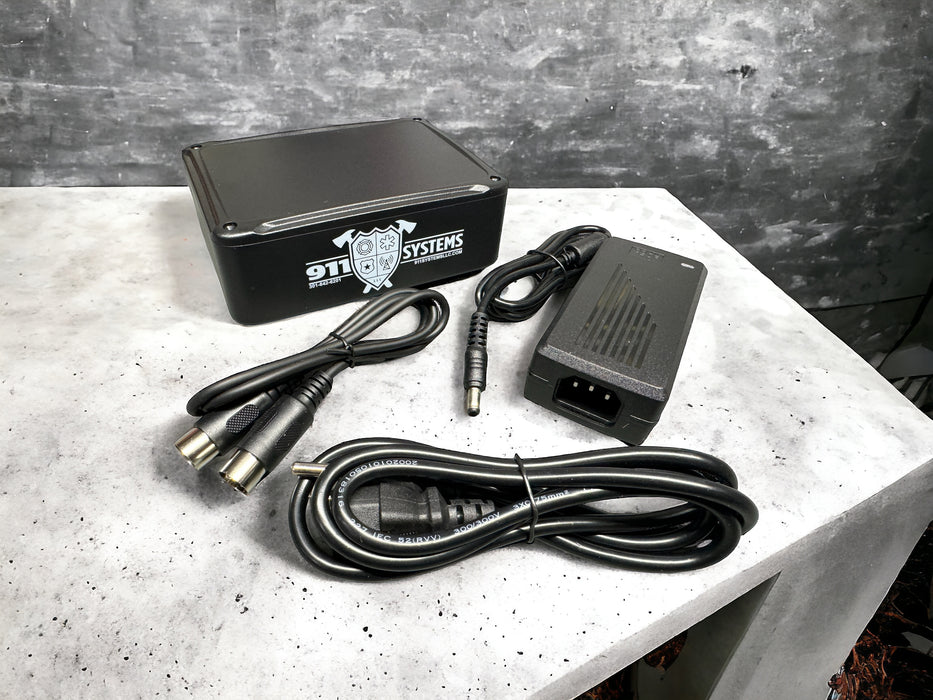

SA812 Station Alert Controller Kit Includes:
SA812 Controller
12VDC 5 Amp Power Supply
5-Pin DIN Pager Motorola & Unication Pager Link Cable
User Manual
The Station Alert SA812 Controller is designed to be connected directly to a Unication G Series or Motorola Minitor Amplified Charger. It has user-configurable operating modes and dual outputs with independent time settings. The Outputs can be configured for direct 12vdc-connected devices such as our available LEDs and Bells or can be configured as a dry contact relay to control other external devices. The included LED indication light on the rear panel allows you to see the current state or status of the alert controller.
The SA812 is our first pager-connected alert controller that offers standard screw terminal connections for both outputs and external input. The input allows you to interface items such as a manual activation button or a 2nd pager for mutual aid jurisdictions. These screw terminal connections make it easy to connect devices without a proprietary connector.
Relay K2 has two connections, one being on the rear of the controller and the other available on the inside of the controller housing. This secondary connection is designed to allow users to affix LEDs or other notification devices directly to the housing of the alert controller.
The user selects all setting and times from inside the controller. These settings include the following operating modes and times:
Operating Modes:
The SA812 Offers Multiple Operating Modes. See List in images.
Time Settings: (K1 and K2 Have Independent Times)
1 Seconds
3 Seconds
5 Seconds
10 Seconds
15 Seconds
30 Seconds
45 Seconds
1 Minute
3 Minutes
5 Minutes
10 Minutes
15 Minutes
30 Minutes
45Minutes
*K1 Can also be configured for cycles in Gong Mode (See Manual For Info)
The SA812 is replacing the SA2, SA2+ & SA3 Controllers.
