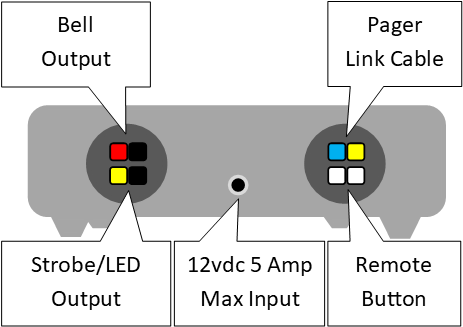

This controller is designed to operate up to 20 Alerting devices (Depending on power Supply) and is activated by your existing pager or tone alert receiver. The SA3 Model adds the remote button port to add a remote activation button in your radio room or watch office. For each alert activation there are 2 separate outputs and each have an independent timer. So you can have your bell(s) activate for a selected amount of time and your LEDs or Strobes activate for a separate amount of time. The timers are user programmable and come set to Bell Activation: 5 Seconds and Light Activation: 60 Seconds.
The SA3 controller can be used with the following Alert Receivers/Pagers:
- Motorola Minitor Amplified Chargers (Minitor 3 thru 6) w/ CBL1
- Unication G-Series Amplified Chargers (G1 thru G5) w/ CBL1
- Swissphone Voice and Alphanumeric Pagers w/Din Port
- Veetronix 2TR9A Alert Receiver w/Dual Relay Output
- Federal Signal Informer (TAR)
This item requires the purchase of a power supply and relay trigger cable separately.
