When Pager Alerts, Controller Plays Heart Safe Alert Audio Over PA System & Activates Visual Notification Device

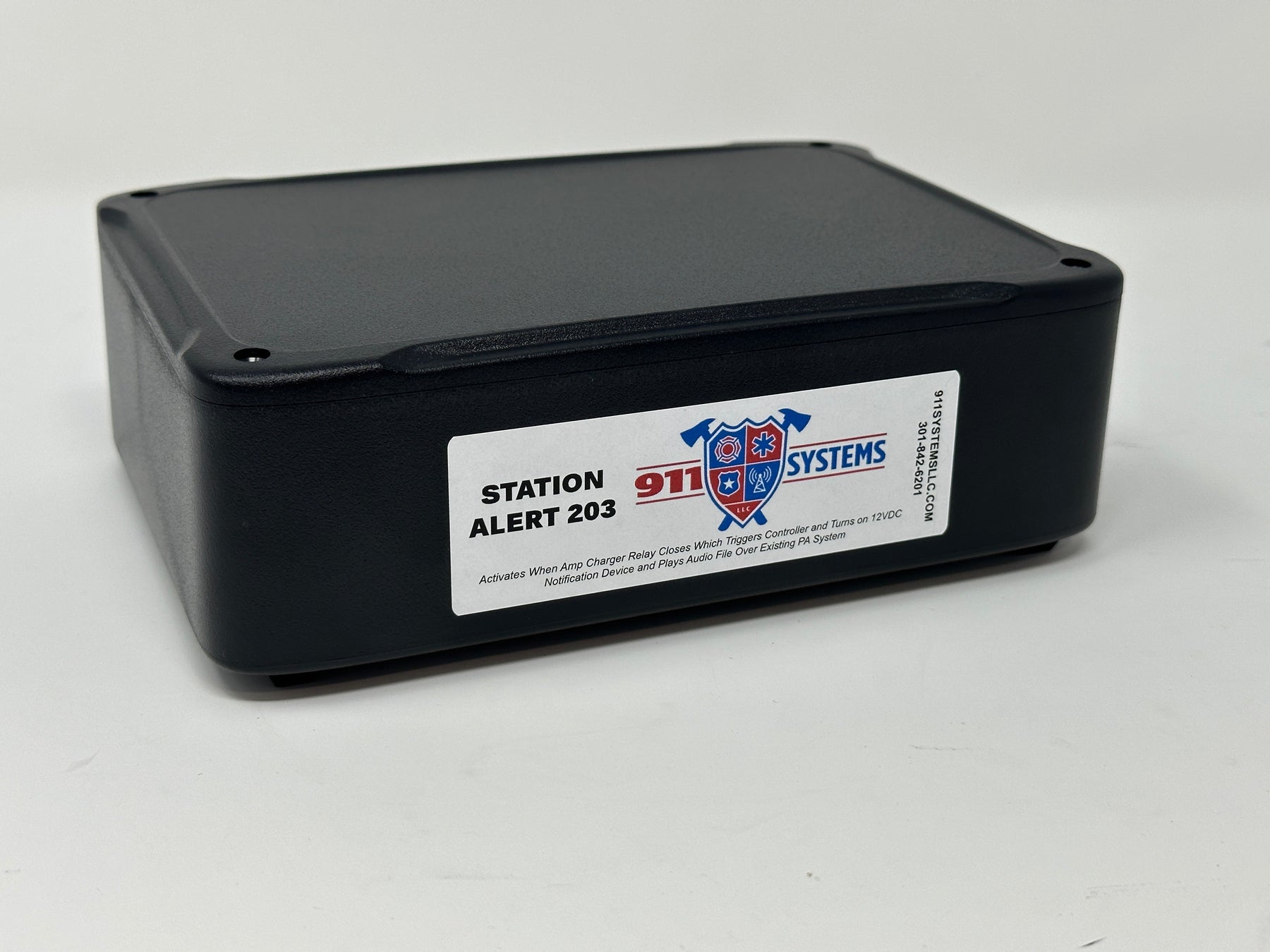

The SA203 controller (Formally Called Voice Alert - Pro) is designed to play user selected audio to your existing PA Amplifier when the attached Pager alerts for a call. The Message that plays is user configurable on the included Micro-SD Card. 911 Systems LLC Provides a Default Warble Audio File that Ramps Up to Comply with "Heart Safe" Alerting. You can purchase Audio Files from our store or we can create completely custom alert audio files for you. The SA203 also has an output for either Visual Alerting Devices or Audible Alerting devices and Remote Button Port for placing an Station Alert Activation Button up to 150 feet from the controller.

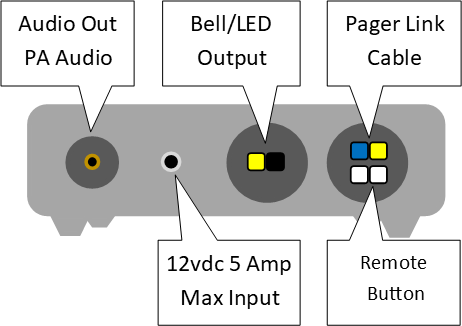

The SA203 Alert Controller I/O:
- 12VDC 5 Amp Max DC Input Jack
- 1/8" (3.5mm) Audio Output (Links Controller to PA Audio Amplifier)
- Pager Link Cable Port Input Connector
- Remote Activation/Test Button Input Connector
- Visual or Audible Alert Device Output Connector

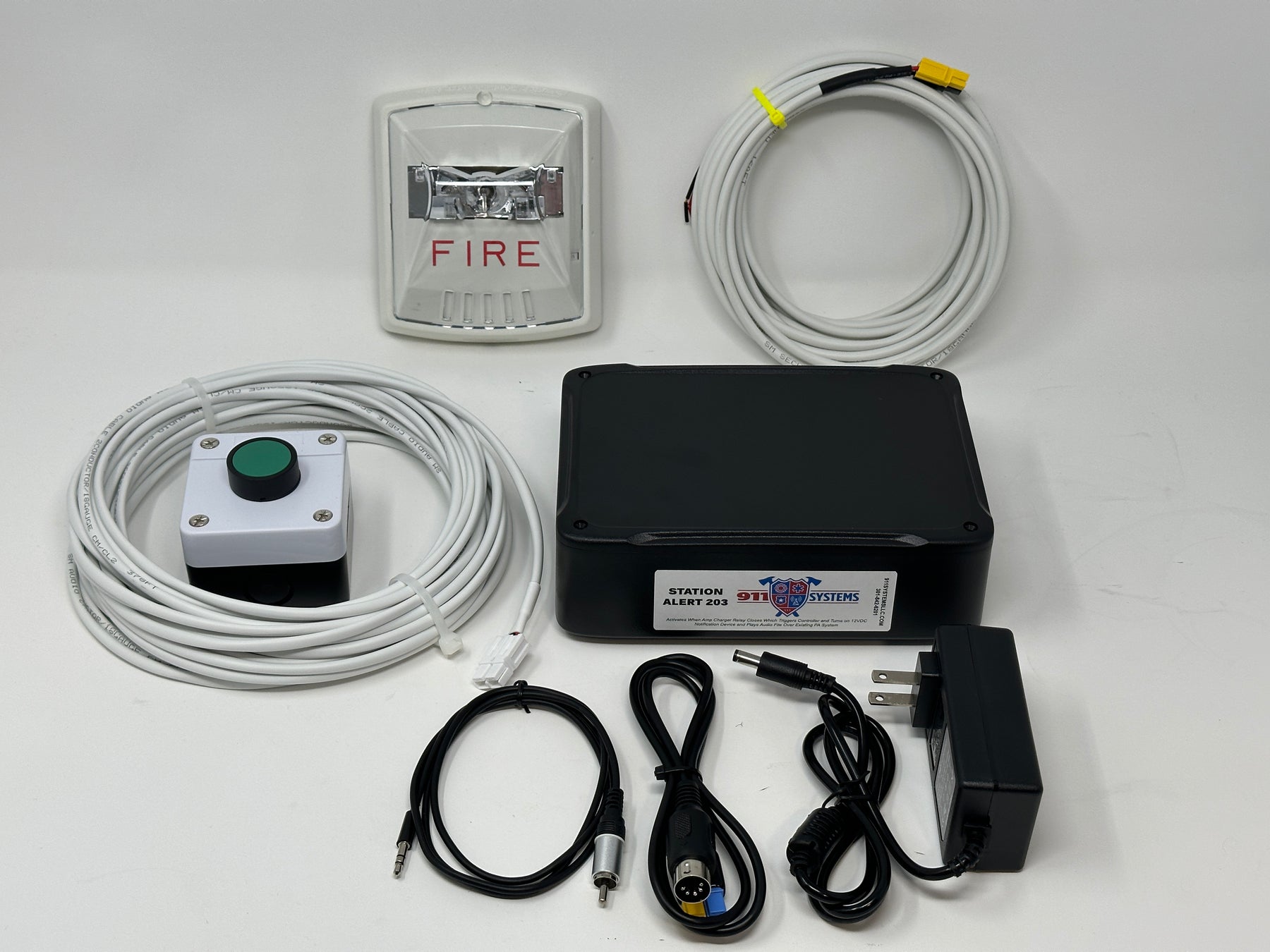

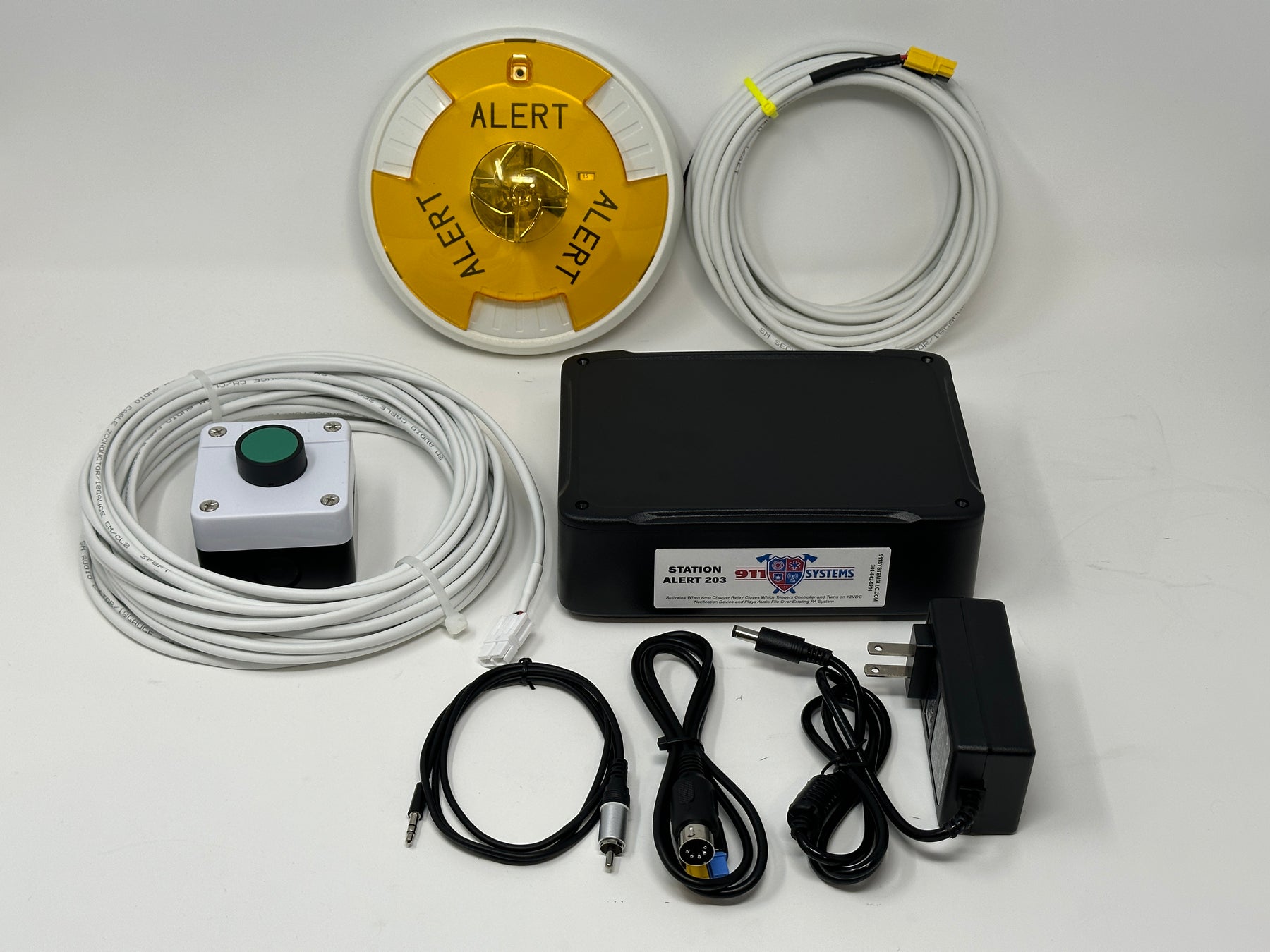

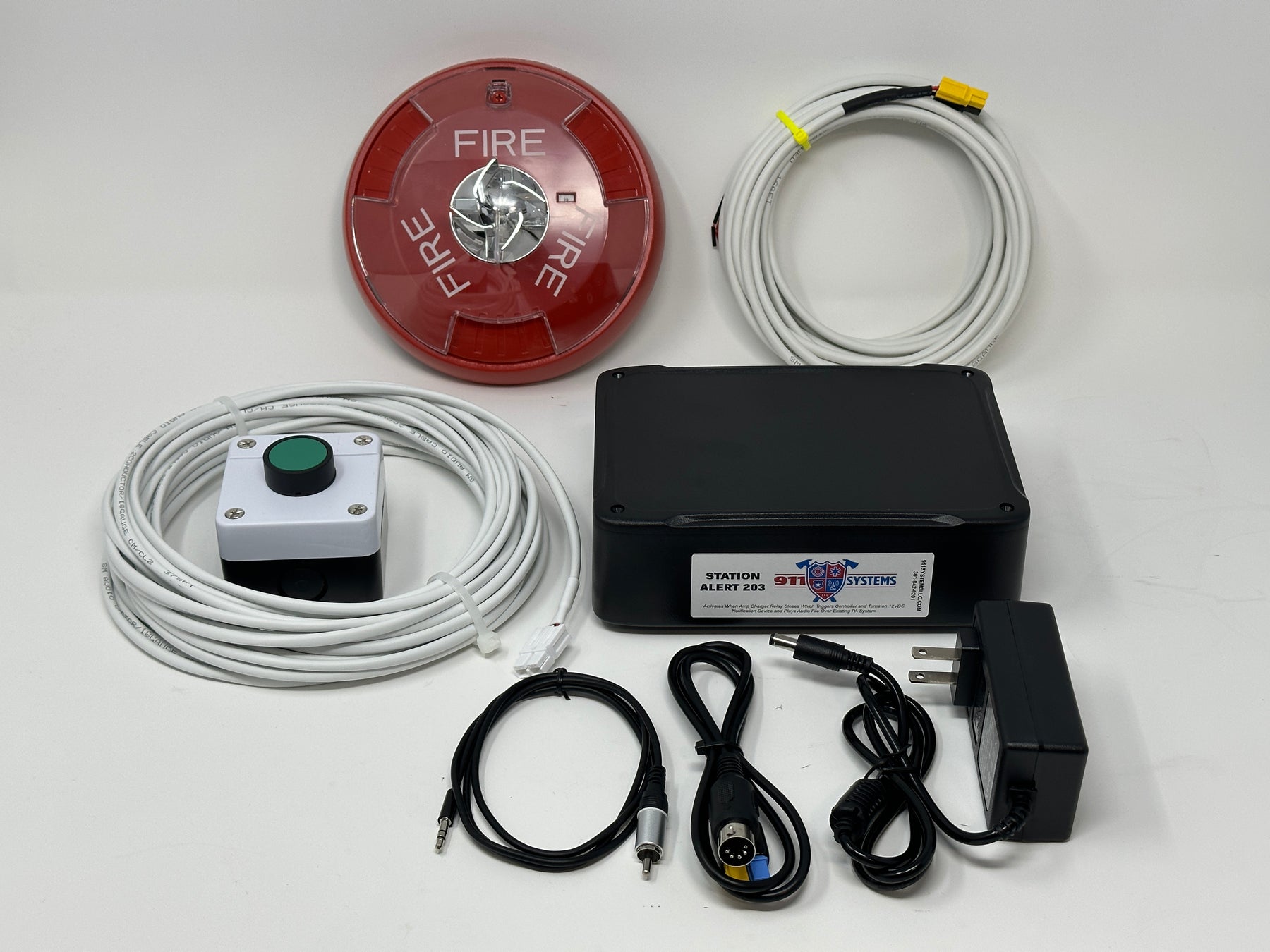

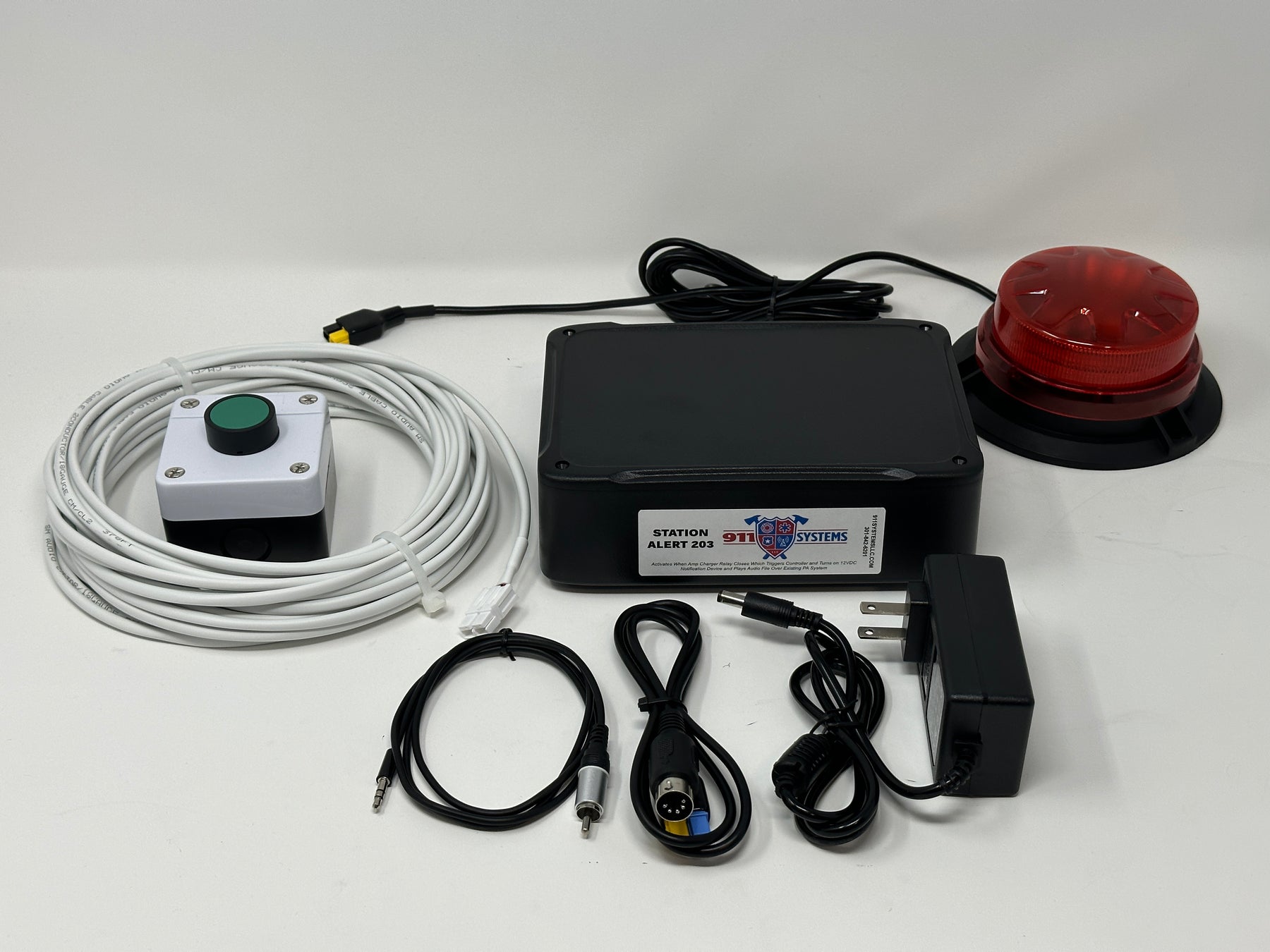

SA203 Kit Includes:
- SA203 Controller
- 12V 3 Amp Power Supply
- Pager Link Cable (Motorola / Unication Standard)
- 1/8" (3.5mm) Stereo to Phono Audio Cable Connects Controller to PA Amplifier
- Remote Test/Activation Button w/25 Feet of Cable
- Choice of one Notification Device
- 25 Feet of Notification Device Connection Cable
This controller can be used with the following Alert Receivers/Pagers:
- Motorola Minitor Amplified Chargers (Minitor 3 thru 6) w/ CBL1
- Unication G-Series Amplified Chargers (G1 thru G5) w/ CBL1
- Swissphone Voice and Alphanumeric Pagers w/Din Port CBL2 or CBL3
- Veetronix 2TR9A Alert Receiver w/Dual Relay Output
- Federal Signal Informer (TAR)
