This Alert Kit Is Designed for a Dual Pager Setup
SA202 is a Dual Pager Alert System and allows you to have two different pagers connected to the alert controller. This Controller will play a different audio file and turn on separate Notification devices based on the pager that activates.
This controller is designed to play user selected audio to your existing PA Amplifier when the attached Pager(s) alert for a call. The Message that plays is user configurable on the included Micro-SD Card. 911 Systems LLC Provides a Default Warble Audio File that Ramps Up to Comply with "Heart Safe" Alerting. You can purchase Audio Files from our store or we can create completely custom alert audio files for you.
This Controller will Play Different Audio Based on Which Connected Pager Activates and will also activate Independent LEDs. This allows you to have a pager for say Fire calls Connected to input 1 and EMS Calls Connected to Input 2. When I Fire Call is Received LED 1 Turns on and Plays the audio assigned for fire and like wise for EMS.
The SA202 controller can be used with the following Alert Receivers/Pagers:
- Motorola Minitor Amplified Chargers (Minitor 3 thru 6) w/ CBL1
- Unication G-Series Amplified Chargers (G1 thru G5) w/ CBL1
- Swissphone Voice and Alphanumeric Pagers w/Din Port CBL2 or CBL3
- Veetronix 2TR9A Alert Receiver w/Dual Relay Output
- Federal Signal Informer (TAR)

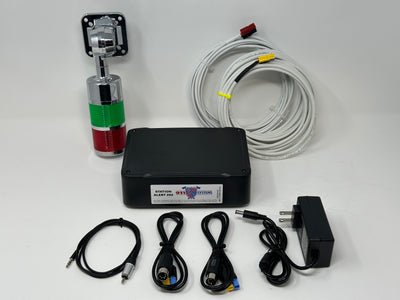

- SA202 Controller
- 12vdc 3amp Power Supply
- 2x Pager Connection Cables (Specify if other then Motorola / Unication)
- Audio Output Cable for Connecting Controller to PA Audio
- Choice of Dual Lighting / Notification Solution
- 2x 25' Light Connection Cables
